Welded wire mesh is extensively used to reinforce concrete in the construction industry. It is made up of high tensile steel bars which are welded together by the process of electric fusion. The mesh is basically a metal screen that is made up of low carbon steel wire. It is a prefabricated welded grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at Precise Calibrated spacing. Machines are used to produce the mesh with precise dimensional control and hence they have a tremendous Advantage over the Conventional Mesh by the traditional Tying method.

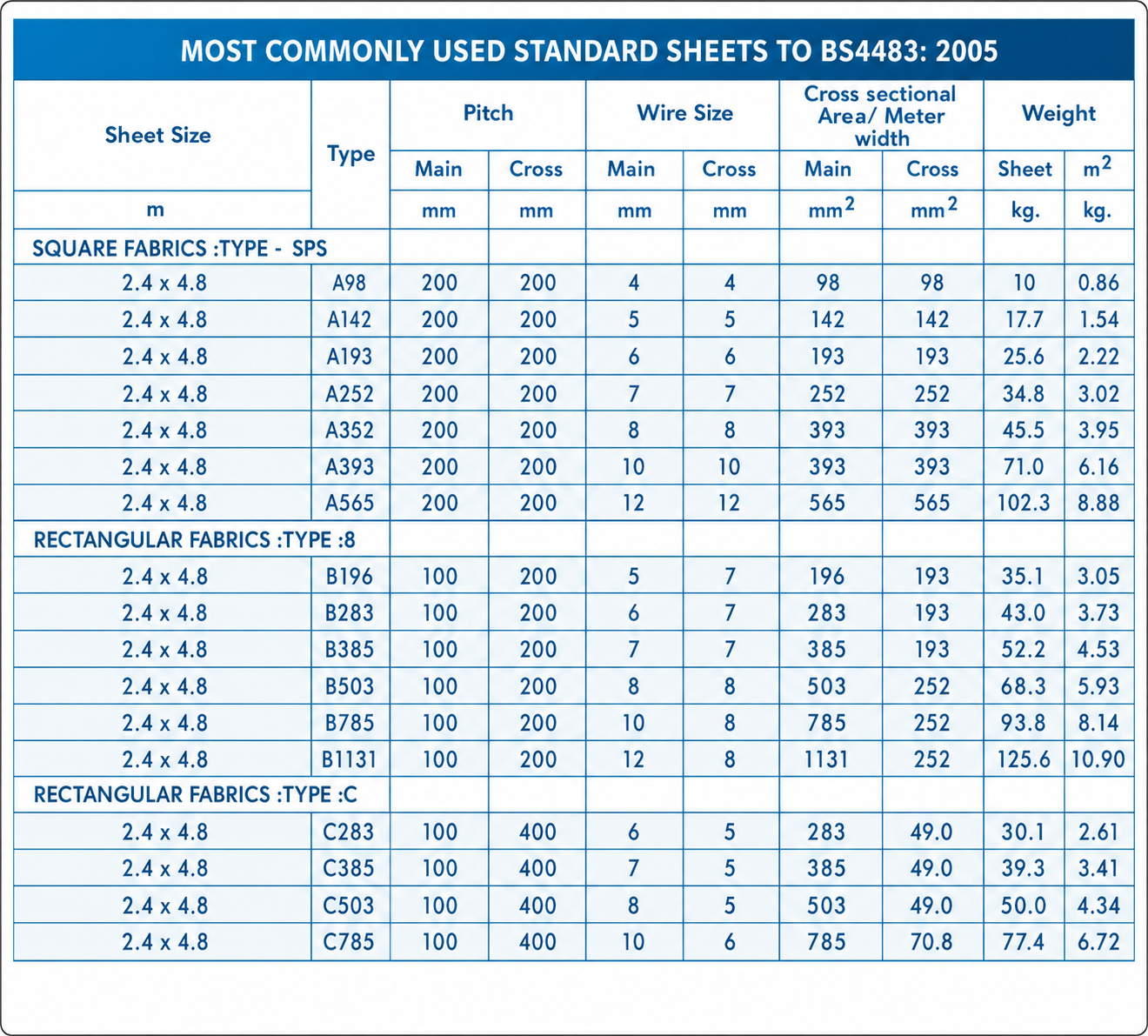

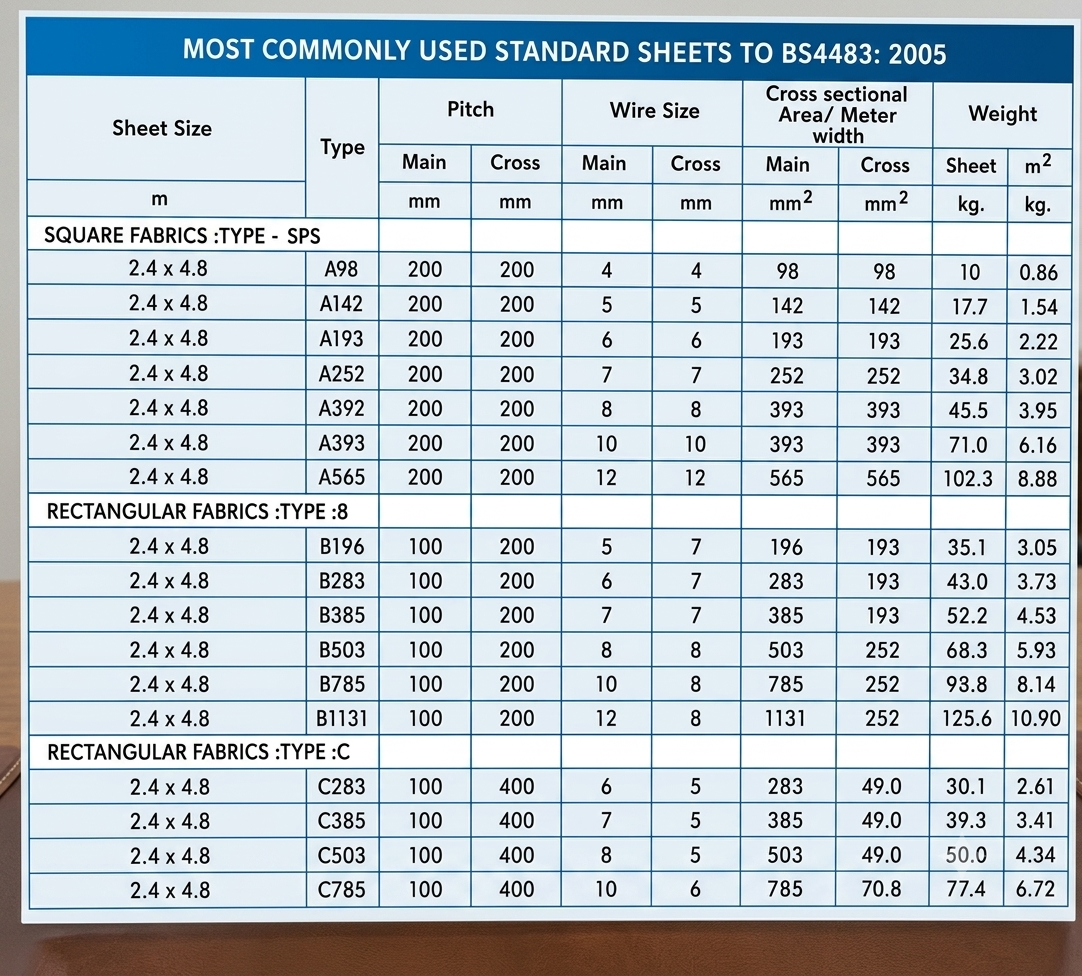

Standard Mesh for Concrete Reinforcement according to
Max sheet length : 6 meters
Max sheet width : 3.2 meters
Long wire dia : Max-12.00mm, Min-4 mm
Cross wire dia : Max-12.00mm, Min-4 mm
Long wire spacing : Multiples of 100, 150, 200mm – Min 100mm – Max 400mm
Cross wire spacing : Multiples of 100 mm
• Used as a substitution for the conventional time consuming method of reinforcement tying loose bars together.
• Accelerates the construction program by reducing the fixing time. Thus, saving man hours resulting in reduced Manpower and hence Monetary Savings
• Improvement in accuracy of work and safety / health benefits by reducing on site handling and cutting thereby reduction in the number of Onsite Casualties.
• Due to uniformity of steel for a given area, better distribution of steel for nominal control over cracking and shear.
• Ensures Easy interpretation for steel fixing drawing with checking and detailing, due to Standard Calibration and thus reduces fixing errors.
• Reinforced concrete floors, curtains, retaining walls, foundations.
• Road surface & concretization of Parking Lots, airports, tunnels and galleries.
• Swimming pools, channels, prefabricated structure elements.
• Ready to fix stirrup in beams and columns.
• Used as Kind of barrier fencing
